T2 commissioned build

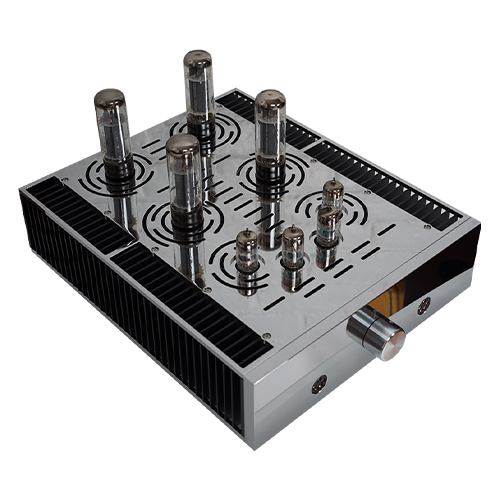

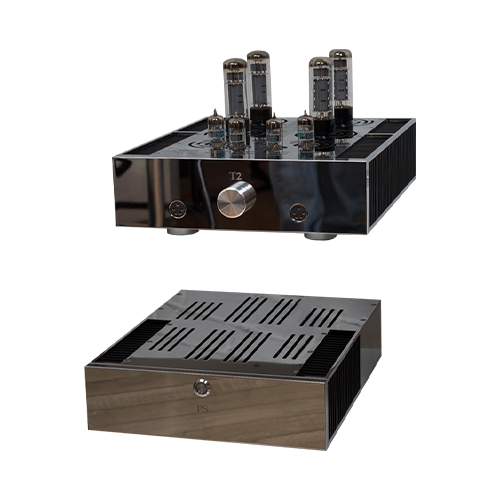

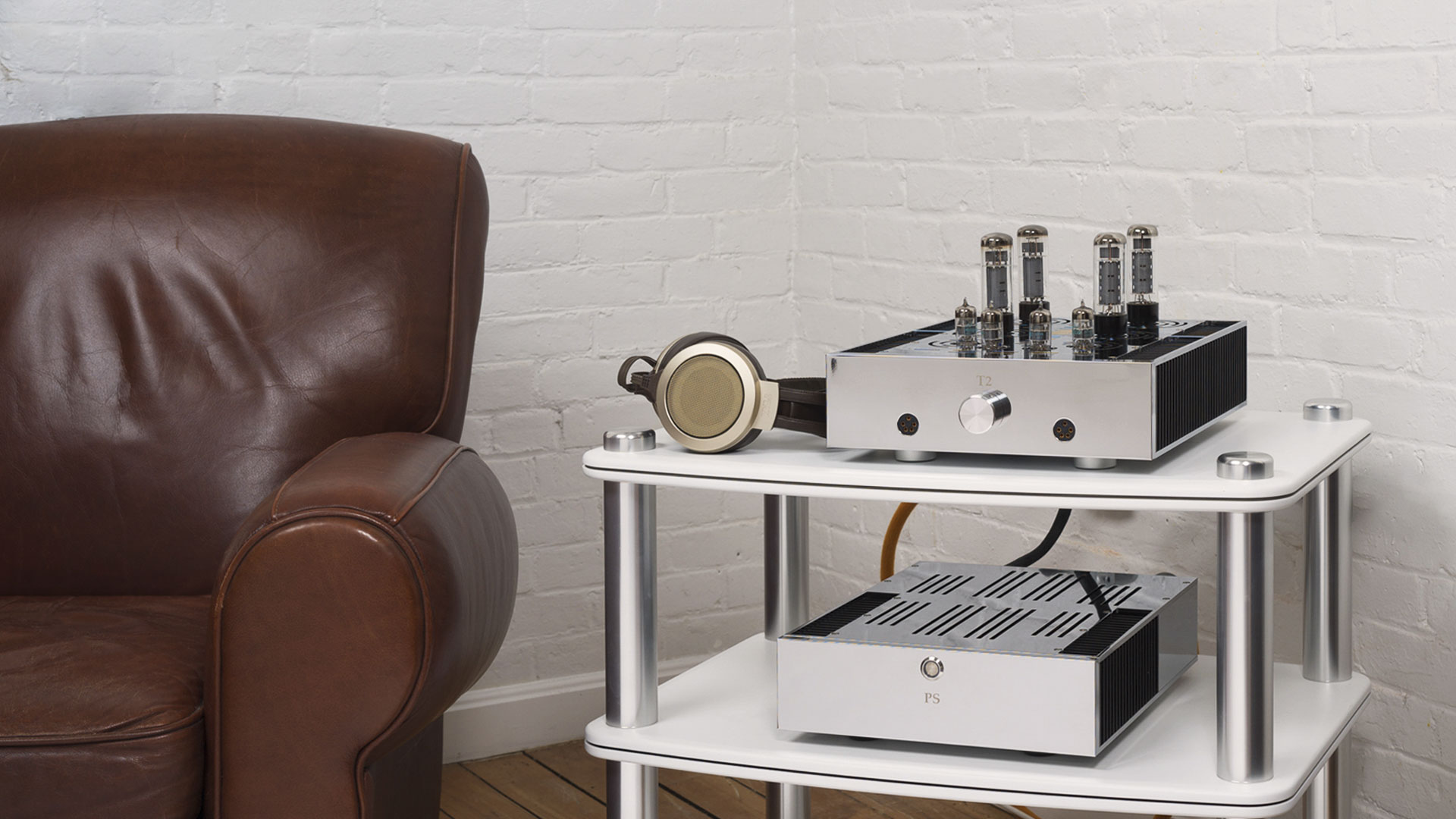

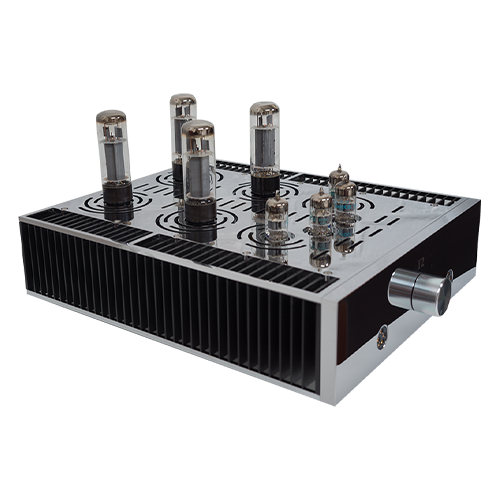

Eksonic has brought the legendary DIY T2 amplifier to market as a professional commissioned build. This “Kerry Built” version is identical to the Kevin Gilmore T2 DIY version, but with a few tweaks.

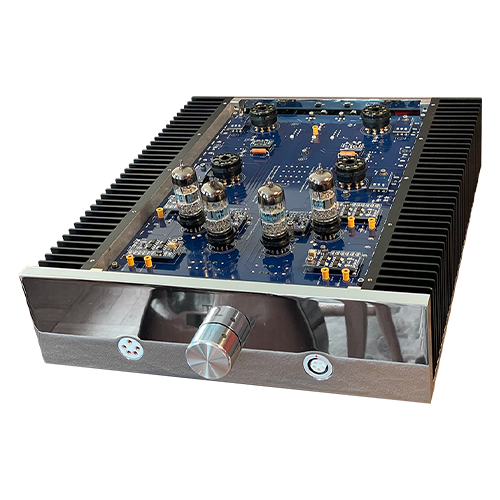

The T2 was originally developed in 1994 by Dr. Takeshi Hayashi for Stax and brought to the DIY community by Kevin Gilmore in 2009 with the support of Mjolnir Audio (Spritzer) and the DIY community. The “Kerry Built” version was first developed in 2016 and was received by customers with enthusiasm. It is a miniaturization of this DIY build using mostly SMD technology and many modernized parts. We do, however, retain some of the original transistors that give this remarkable amp its wonderful qualities.

For more information about our products or to purchase, please

Contact us

Capabilities

Works with any Stax compatible Pro Bias headphones including Stax, Audeze, Dan Clark Audio, ES Lab and more.

Technical Specifications

Input XLR – Accepts balanced or single-ended (with grounded RCA to XLR cable)
Input Impedance 50K x2
Gain 1000x
Frequency Response 10Hz – 30KHz
Max P-P Voltage 2000VAC
Max RMS Voltage 1400VAC
Output Stax Pro-Bias x2
Vacuum Tubes 6DJ8/6922 (Input) and EL34 (Output)
Power Consumption 200W
Amplifier External Dimensions 30.5 cm x 36.8 cm x 18.8 cm (12” x 14.5” x 7.4”) – W x D x H

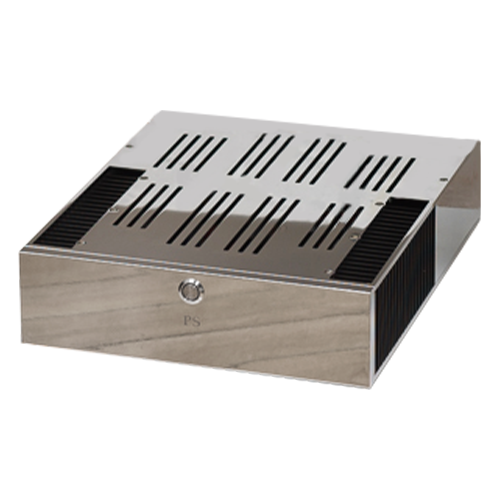

Power Supply External Dimensions 30.5 cm x 36.8 cm x 10.7 cm (12” x 14.5” x 4.2”) – W x D x H
Weight 20.5 Kg (45 lbs)
Mains AC 115/230VAC Switchable
Warranty 3-year limited warranty (contact us for details)
